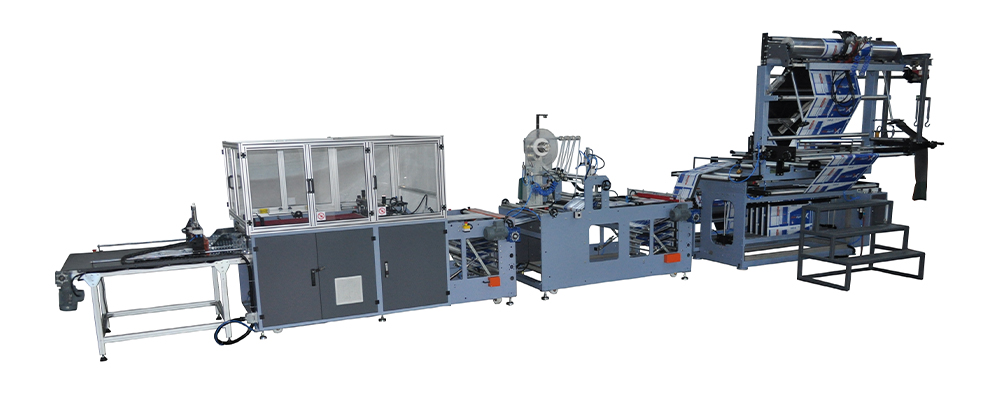

| ÖZM 850 LXK |
| CAPACITY | 250 pcs/min (max) |
| BAG WIDTH | 830 mm max (max) |
| BAG LENGTH | 70-1000 mm (min-max) |
| BAG THICKNESS | 0.007-0.08 mm (min-max) |
| QTY OF SERVO MOTORS | 5 pcs |
| PHOTOCELL | 1 pcs |
| TOTAL POWER | 20 kw |
| AIR PRESSURE | 6 Bar |
| MACHINE DIMENSIONS AND WEIGHT | |
| MACHINE LENGTH | 1040 cm |
| MACHINE WIDTH | 250 cm |
| MACHINE HEIGHT | 280 cm |
| MACHINE WEIGHT | 3700 kg |
STANDARD FEATURES
- Thanks to the touch operator panel, the bag size, the number of bags, the production speed, the number of bags in the package can be seen, the number of stops in the total counting.
- There is 1 photocell. Cuts printed and unprinted bags
- Thanks to the servo motor controlled pulling rollers, it cuts at high speed and with the desired measurement precision.
- Thanks to the servo motor controlled welding jaw, strong and quality welding is ensured.
- Thanks to the servo motor controlled belt system, the belts work synchronously to the stacking system.
- Thanks to Servo Motor controlled stacking rollers, high quality stacking is ensured,
- Warp rolls inverter tension control systems
- With pneumatic ballerina system
- Automatic edge control systems
- Automatically stops when the roll is finished
- Photocell stops automatically when printing place is not correct
- Bobbin diameter max 800 mm
- Ability to work in PP, OPP, CPP, High Density Polyethylene ( HDPE ), Low Density Polyethylene ( LDPE )
FEATURES OF MAKING CARGO BAG
- Bobbin lifting and warp folding unit (1600 mm)
- Two welding unit with hot air
- Document pocket bobbin warping unit and 250 kg winch
- Hotmelt and barcode binding and warping unit
- Stack conveyor
- Stoper roller system with servo motor controlled for better stacking
- Silicone rotative lower jaw
- Air shaft 1 pc
- Strip tape unwinder unit with ballerina and sensor
- Glue crusher
- Static loading and bar
- PE digging jaw (spare)
